Quick Details
- Place of Origin: South Korea
- Brand Name: Modular jack-up barge (MI-85H)
- Model Number: MI-85H
- Part: E
- QUIPMENT: USD 300,000
- product: Myung il Precision Machinery
- Length: 9*9*1.38
- self propelled: optional
- Operating Condition: Wind 15m/sec,height of wave 1.5 meter, Current velocity 1.5 knot
- Working Condition: 8x9 meter /15meter /9 ton
- Power Pack: Main pump Engine 107ps/1800rpm, Main Pump T6CC-017 DENISON
- Time for lift up: 30meter/hour x 1800rpm
- Time for lift down: 27meter/hour x 1800rpm
- Mooring System: Winches 4/1Drum, 4 ton, Ancoors 4 /0.15 ton, moon pool 0.5(W) x 0.5(L)
Packaging & Delivery
| Packaging Details | 40fit container is 4 cans |
|---|---|
| Delivery Time | 70 days |
Made in Korea Jack up Barge _MI-85H jack-up barge
Product Description

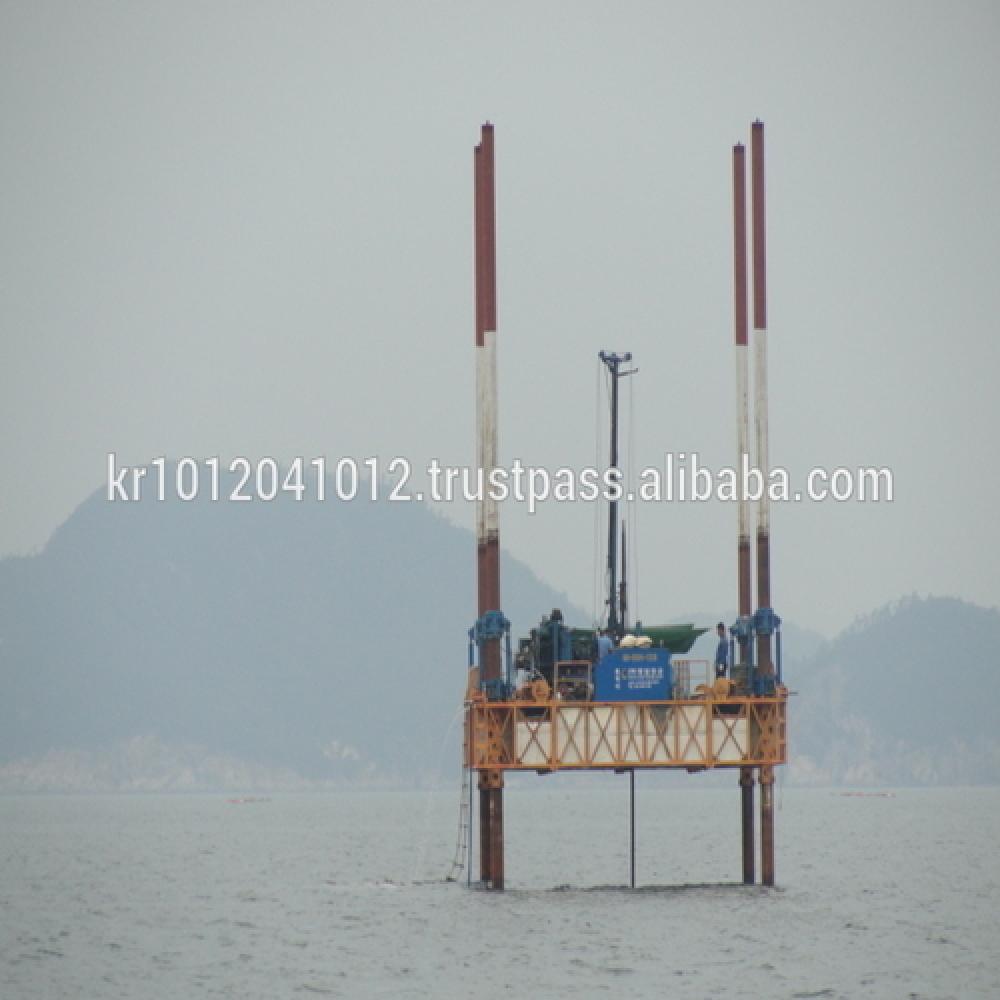

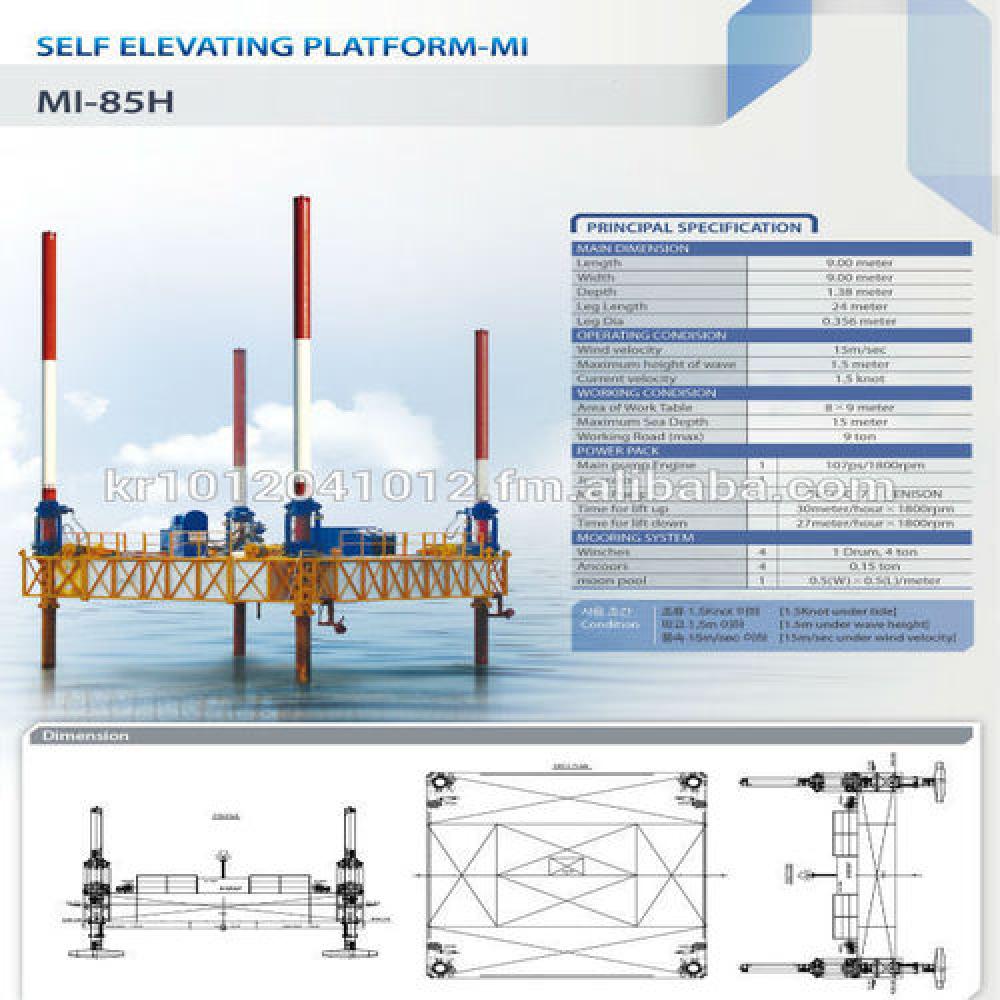

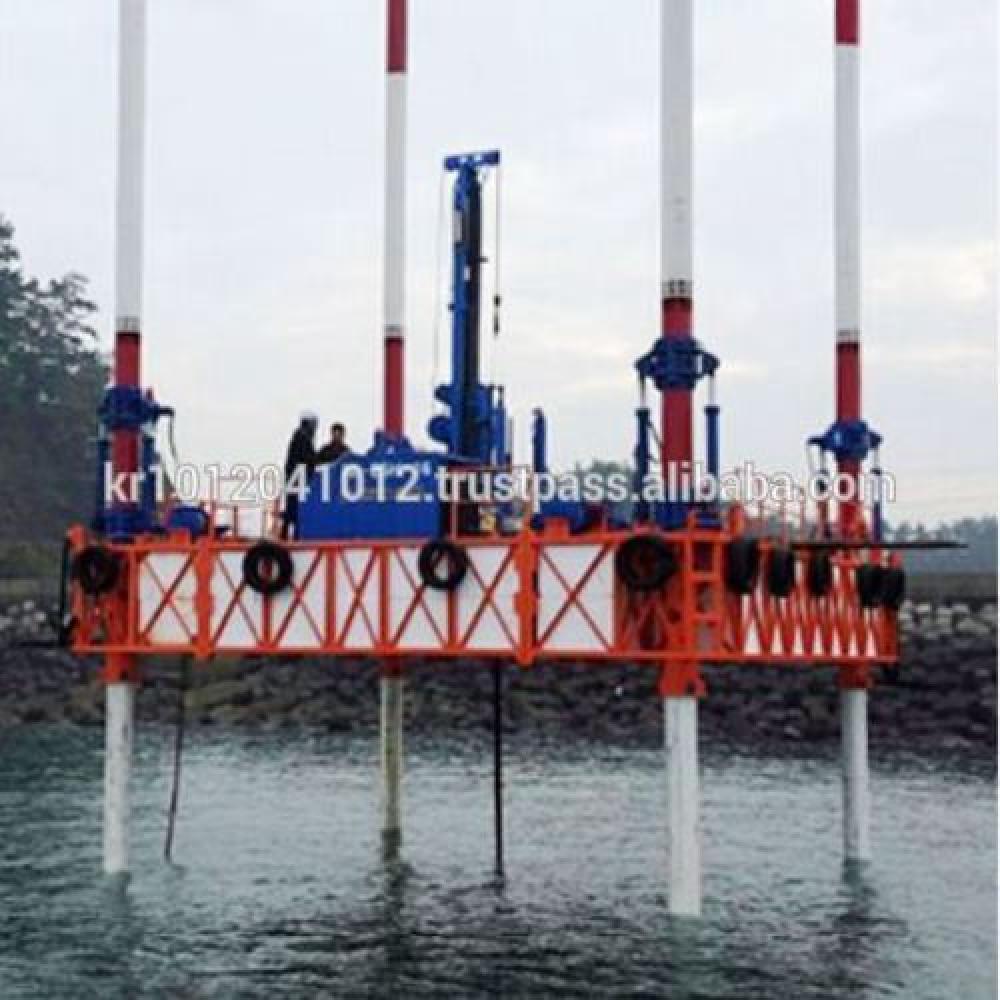

MI-85H jack-up barge
PRINCIPAL SPECIFICATION
| Main Dimension | |
|---|---|
| Length | 9.00 meter |
| Width | 9.00 meter |
| Depth | 1.38 meter |
| Leg Length | 24 meter |
| Leg Dia | 0.356 meter |
| Operating Condition | |
|---|---|
| Wind velocity | 15m/sec |
| Maximum height of wave | 1.5 meter |
| Current velocity | 1.5 knot |
| Working Condition | |
|---|---|
| Area of Work Table | 8x9 meter |
| Maximum Sea Depth | 15meter |
| Working Road(max) | 9 ton |
| Power Pack | ||
|---|---|---|
| Main pump Engine | 1 | 107ps/1800rpm |
| Jenerator | 1 | |
| Main Pump | 1 | T6CC-017 DENISON |
| Time for lift up | 30meter/hour x 1800rpm | |
| Time for lift down | 27meter/hour x 1800rpm | |
| Mooring System | ||
|---|---|---|
| Winches | 4 | 1 Drum, 4 ton |
| Ancoors | 4 | 0.15 ton |
| moon pool | 1 | 0.5(W) x 0.5(L)/meter |
